Automatic Capacitor Banks

Capacitor banks play a critical role in improving the efficiency of electrical power systems by managing and reducing reactive power. These systems consist of multiple capacitors connected in series or parallel, used to enhance power factor, reduce energy losses, and stabilize voltage levels in industrial and commercial power networks. By compensating for the lagging reactive power caused by inductive loads such as motors, transformers, and other industrial equipment, capacitor banks significantly improve overall energy efficiency and reduce electricity costs.

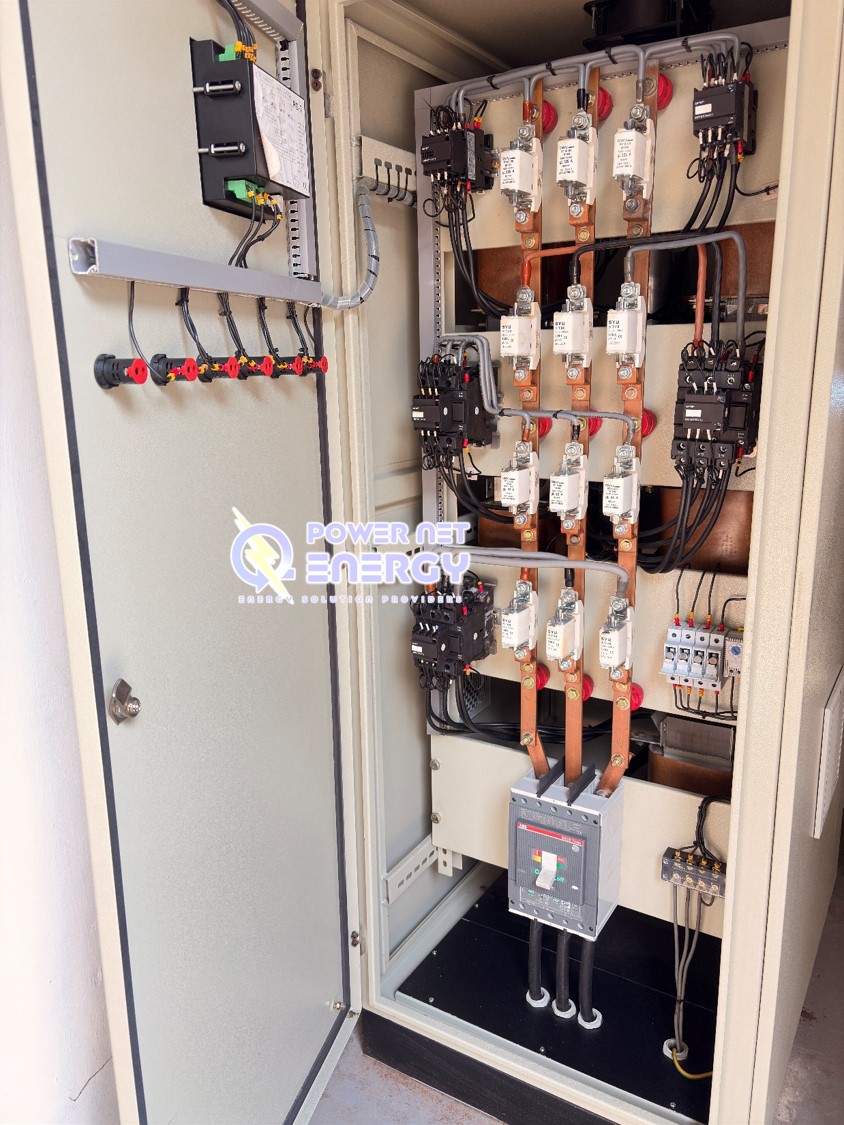

Main Components of an Automatic Capacitor Bank

To build a reliable and efficient automatic capacitor bank, specific components are required, each serving a unique function. Below is an overview of the key components used in capacitor banks:

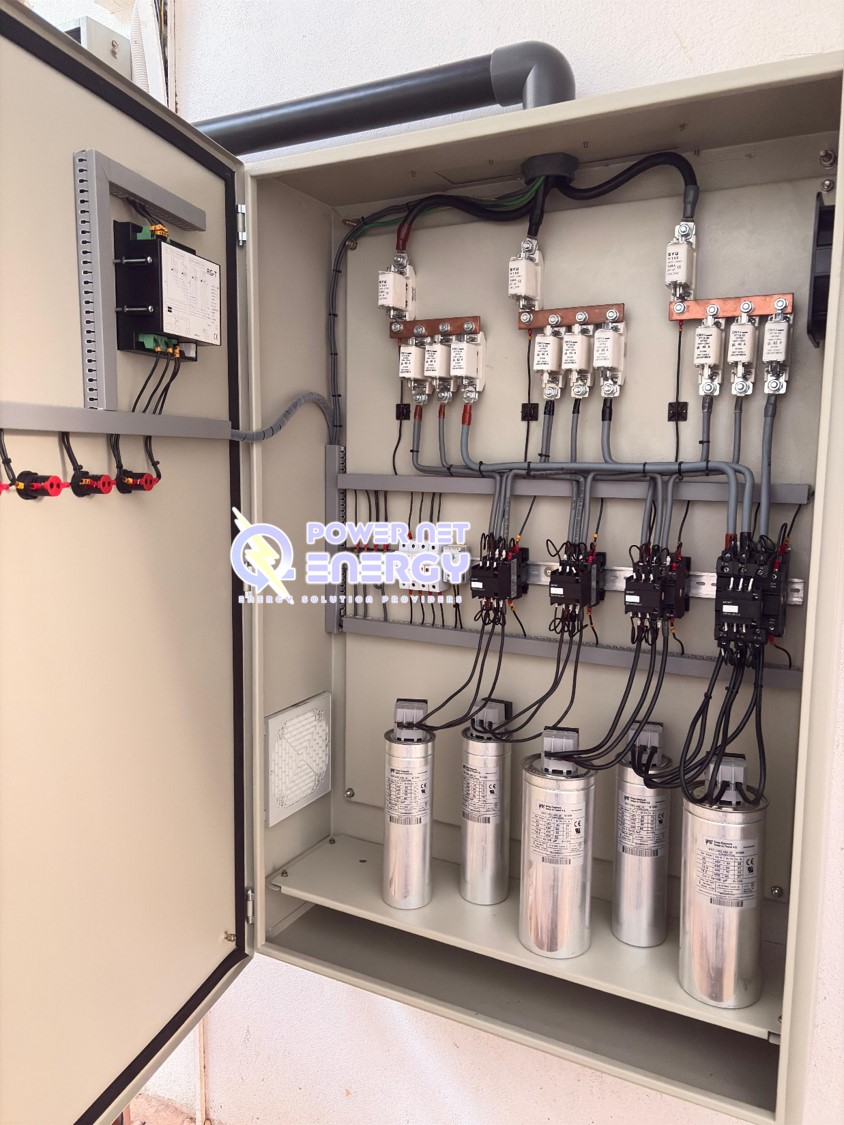

1. Power Capacitors (ENTES CXD Series)

Power capacitors are the core components of a capacitor bank. The ENTES CXD Series capacitors are specifically designed for high performance and durability, providing excellent reactive power compensation. These capacitors are constructed to withstand varying load conditions and ensure long-term reliability in industrial applications.

2. Capacitor Switching Contactors (ENTES KT Series)

Capacitor switching contactors are essential for connecting and disconnecting capacitors in the bank. The ENTES KT Series is an advanced solution, capable of efficiently handling loads up to 75 kVAr. These contactors include inrush current limiting resistors, which reduce the high initial current surge during capacitor switching. This feature not only extends the lifespan of the contactor but also prevents potential damage to the system, making the ENTES KT Series superior to standard contactors.

3. Automatic Power Factor Control Relay (ENTES RG Series or RGI Series)

The automatic power factor control (PFC) relay is the brain of the capacitor bank. It monitors the power factor in real-time and automatically switches capacitors on or off to maintain the desired power factor level. The ENTES RG and RGI Series are advanced PFC relays that provide precise control and user-friendly interfaces, ensuring optimal system performance.

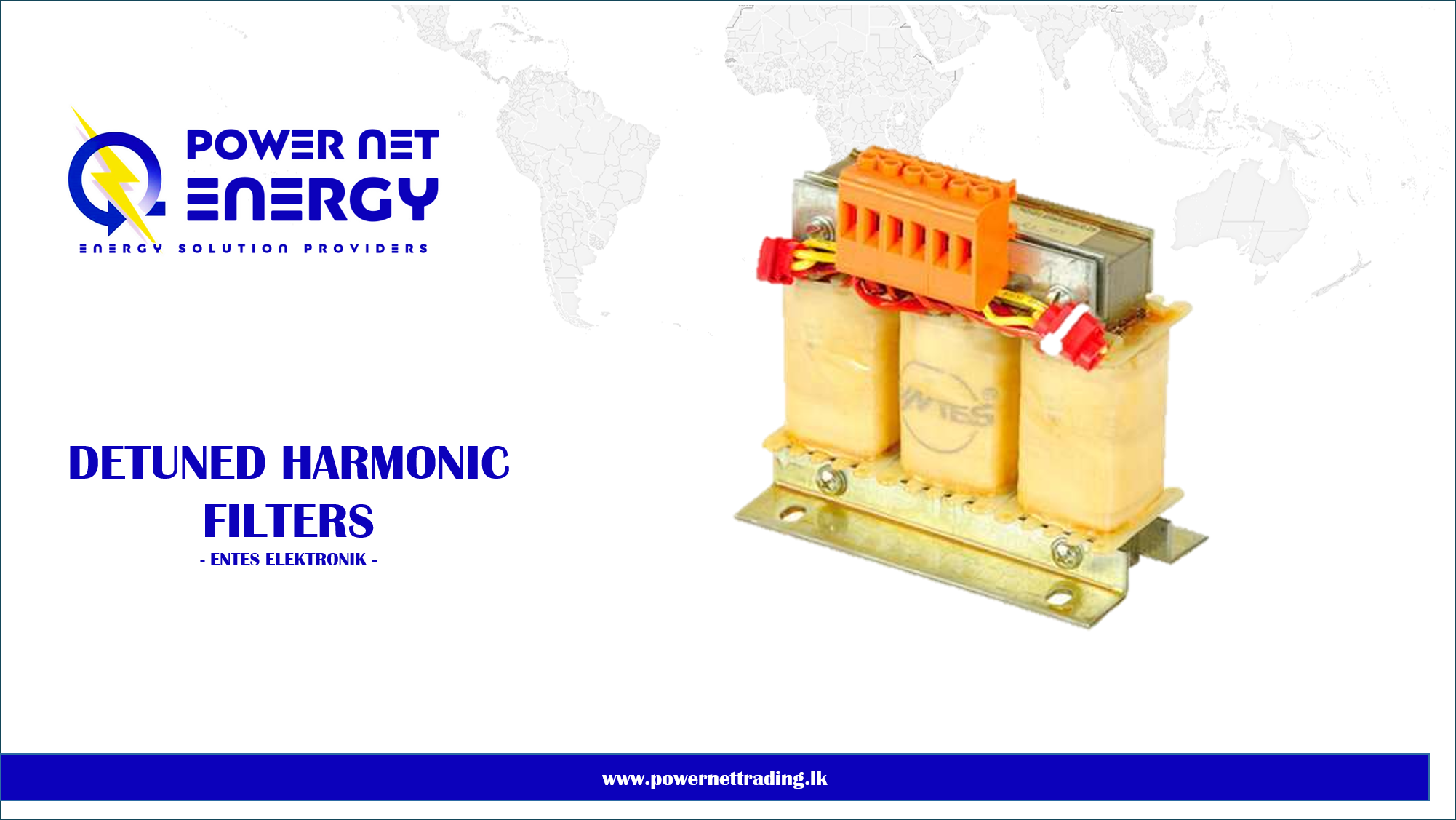

4. Harmonic Filters (ENTES ERH Series)

In environments where harmonic distortion is significant, harmonic filters are used to mitigate the adverse effects of harmonics. The ENTES ERH Series harmonic filters effectively reduce both voltage total harmonic distortion (V THD) and current total harmonic distortion (I THD), ensuring that the capacitor bank operates efficiently without interference from harmonic currents.

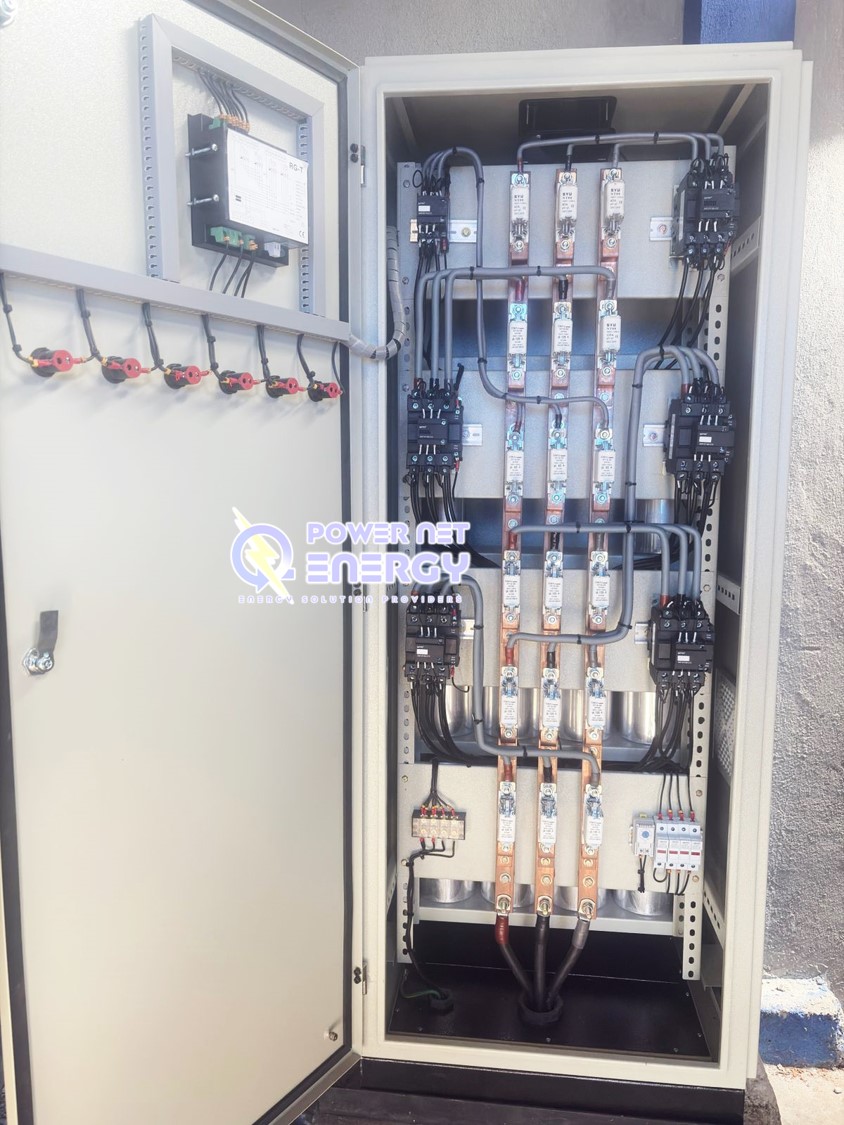

5. Protection Components

Protection is vital to ensure the safety and longevity of the capacitor bank. Each step in the capacitor bank is protected by high rupturing capacity (HRC) fuses, which safeguard against overcurrent and short circuits. Additionally, the main power supply to the capacitor bank can be equipped with a molded case circuit breaker (MCCB) upon customer request, providing added protection and flexibility.

Why Choose Capacitor Switching Contactors with Inrush Current Limiting Resistors?

Standard contactors are not designed to handle the high inrush currents associated with capacitor switching, which can lead to significant wear and tear or even failure. The ENTES KT Series capacitor switching contactors address this issue by incorporating inrush current limiting resistors, which:

Gradually reduce the high initial current surge during switching.

Minimize mechanical and electrical stresses on the contactor and capacitors.

Enhance the reliability and lifespan of the capacitor bank.

The ENTES KT Series stands out with its ability to handle loads up to 75 kVAr efficiently, making it a robust and dependable solution for industrial applications.

Designing a Capacitor Bank

The design of a capacitor bank begins with a comprehensive analysis of the power quality at the industrial or factory site. Our process includes:

1. Power Quality Analysis:

Using advanced power quality analyzers, we measure critical parameters such as: Voltage (V), Current (A), Active Power (kW), Apparent Power (kVA), Reactive Power (kVAr), Power Factor, Harmonic Levels (V THD, I THD)

2. Determining Reactive Power Requirements:

Based on the measurements, we calculate the kVAr required to achieve the desired power factor improvement, typically targeting a power factor of 0.98 to 0.99 lag.

3. Custom Solutions:

We provide a detailed estimate, including the recommended configuration and components, tailored to maximize energy savings and optimize system performance.

Maintenance and Service

Proper maintenance is essential to ensure the reliable operation of a capacitor bank. Our maintenance and service approach is comprehensive and customer-centric:

Warranty and Initial Service

24-Month Warranty: All new installations come with a 24-month warranty.

Complimentary Service: During the warranty period, we provide one free service at no additional charge.

Post-Warranty Maintenance

Customers can opt for an annual maintenance contract after the warranty period to ensure continued efficiency and reliability.

Importance of Maintenance for Capacitor Banks

Capacitor banks operate under continuous switching loads, making regular maintenance crucial. Without proper care, components such as capacitors, contactors, and relays can degrade over time, leading to reduced performance or failure. Regular maintenance offers several benefits:

Identifies and resolves potential issues early.

Ensures optimal performance and efficiency.

Provides insights for future planning and upgrades.

After each service, we provide a detailed report, outlining the current state of the capacitor bank and recommendations for future improvements.
