Low Voltage Power Panel Systems

Distribution panel boards play a critical role in managing and distributing electrical power safely and efficiently across industrial and commercial facilities. These systems consist of circuit breakers, busbars, protection devices, and control components, designed to distribute electrical power to multiple circuits while providing reliable protection against overloads and short circuits. By ensuring proper power distribution, improving electrical safety, and enabling effective load management, distribution panel boards support smooth operations, minimize downtime, and enhance the overall reliability and efficiency of industrial power systems.

Main Stages of the Distribution Panel Board

To build a reliable and efficient distribution panel board, specific stages and components are required, each serving a unique function. Below is an overview of the key stages and components used in distribution panel boards:

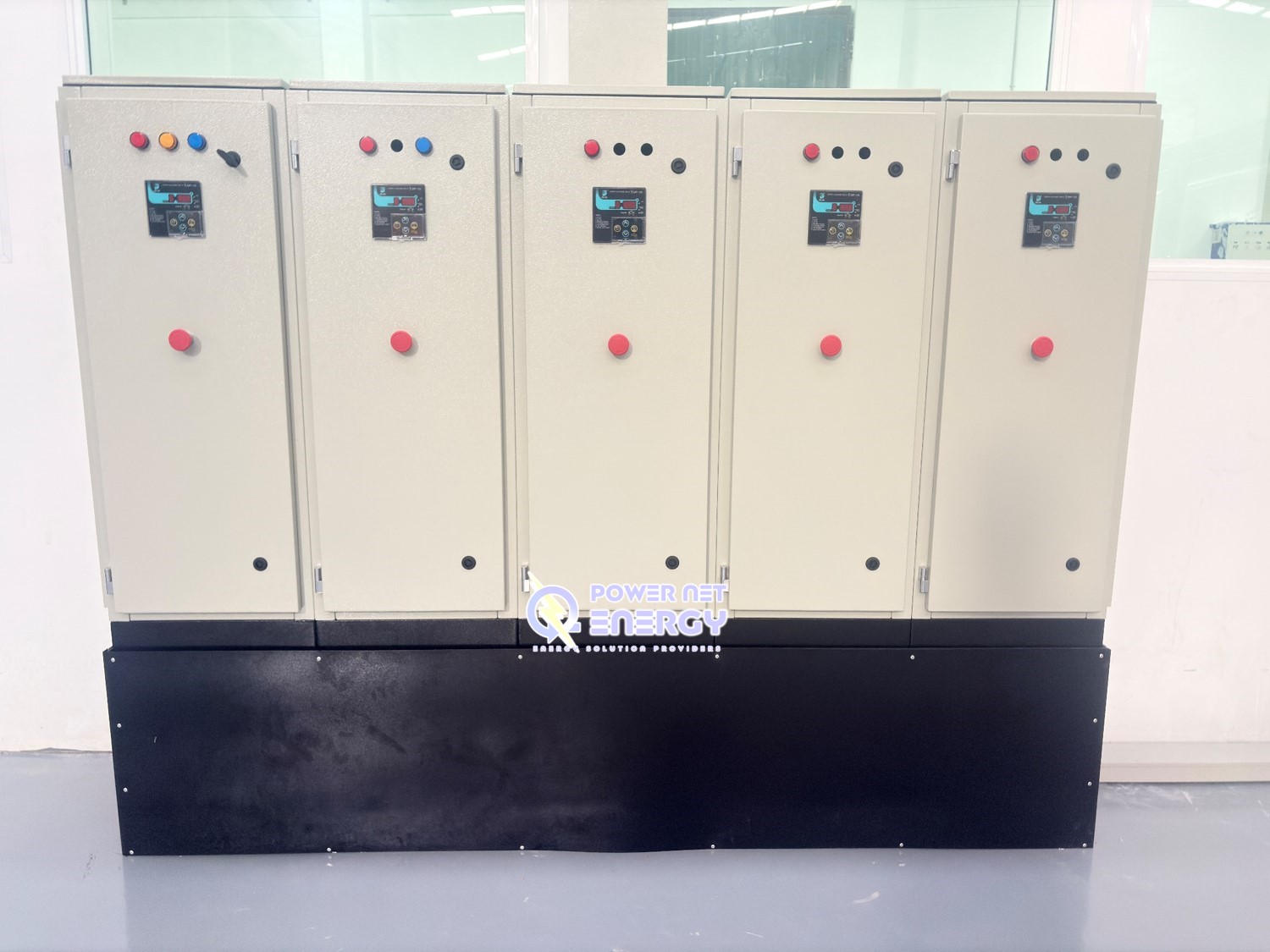

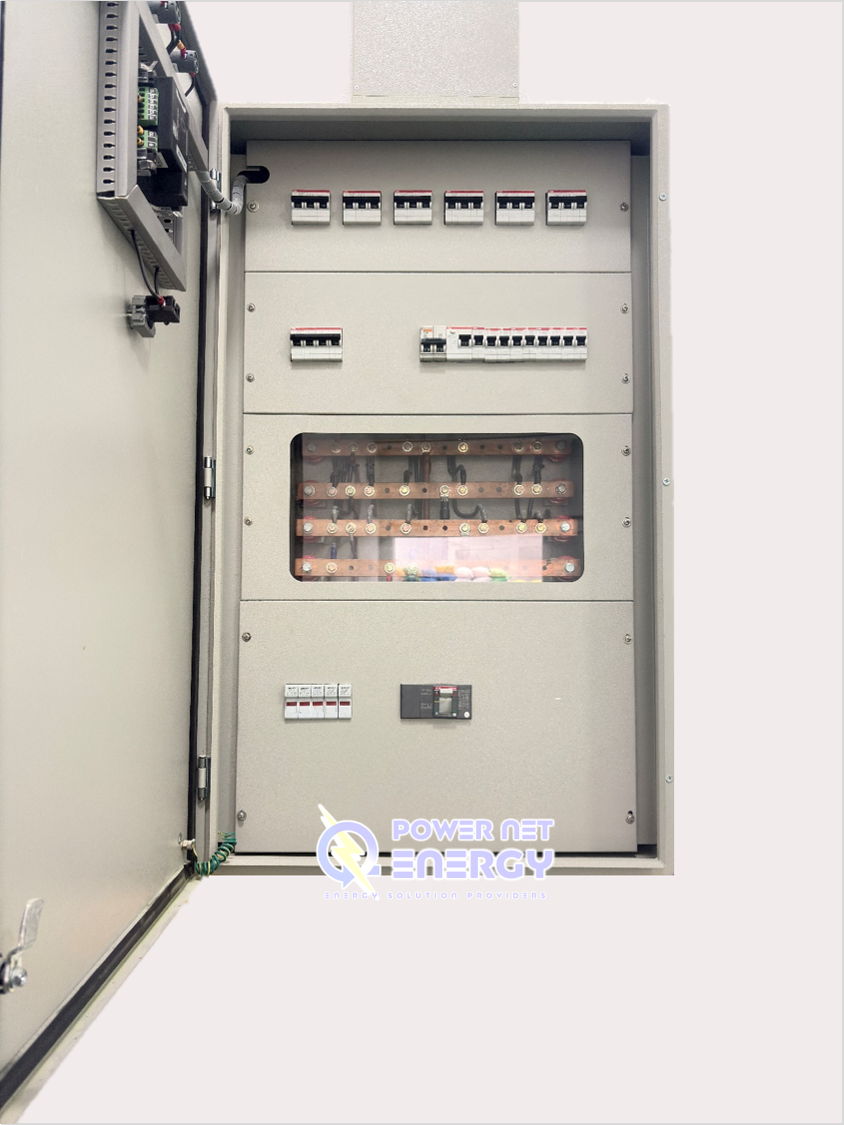

1. Power Distribution (ACB/MCCB/MCB)

Air Circuit Breakers, Moulded Case Circuit Breakers, and Miniature Circuit Breakers are essential components for safe and reliable power distribution. These protective devices are selected according to the current capacity and application of each circuit, providing protection against overloads, short circuits, and electrical faults. They help protect machinery, cables, and electrical equipment while minimizing damage and maintaining a reliable power supply throughout the industry.

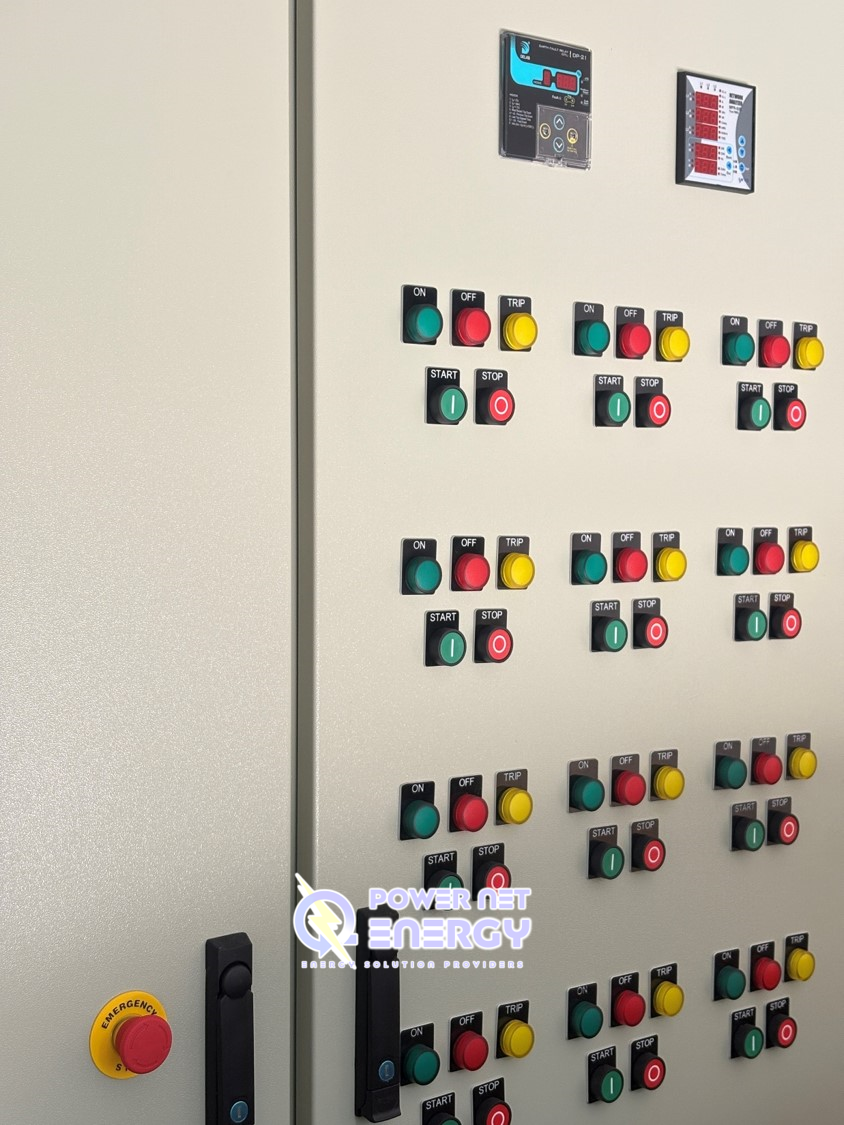

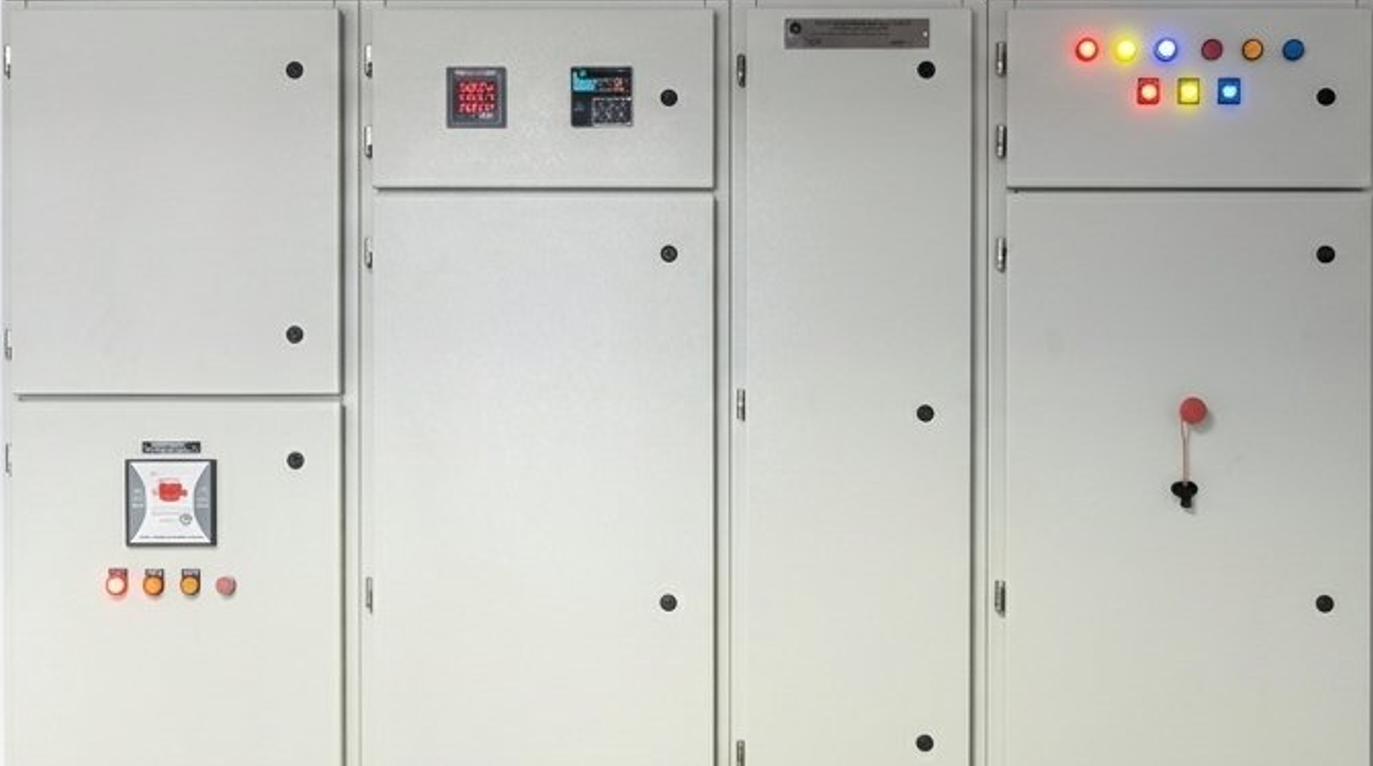

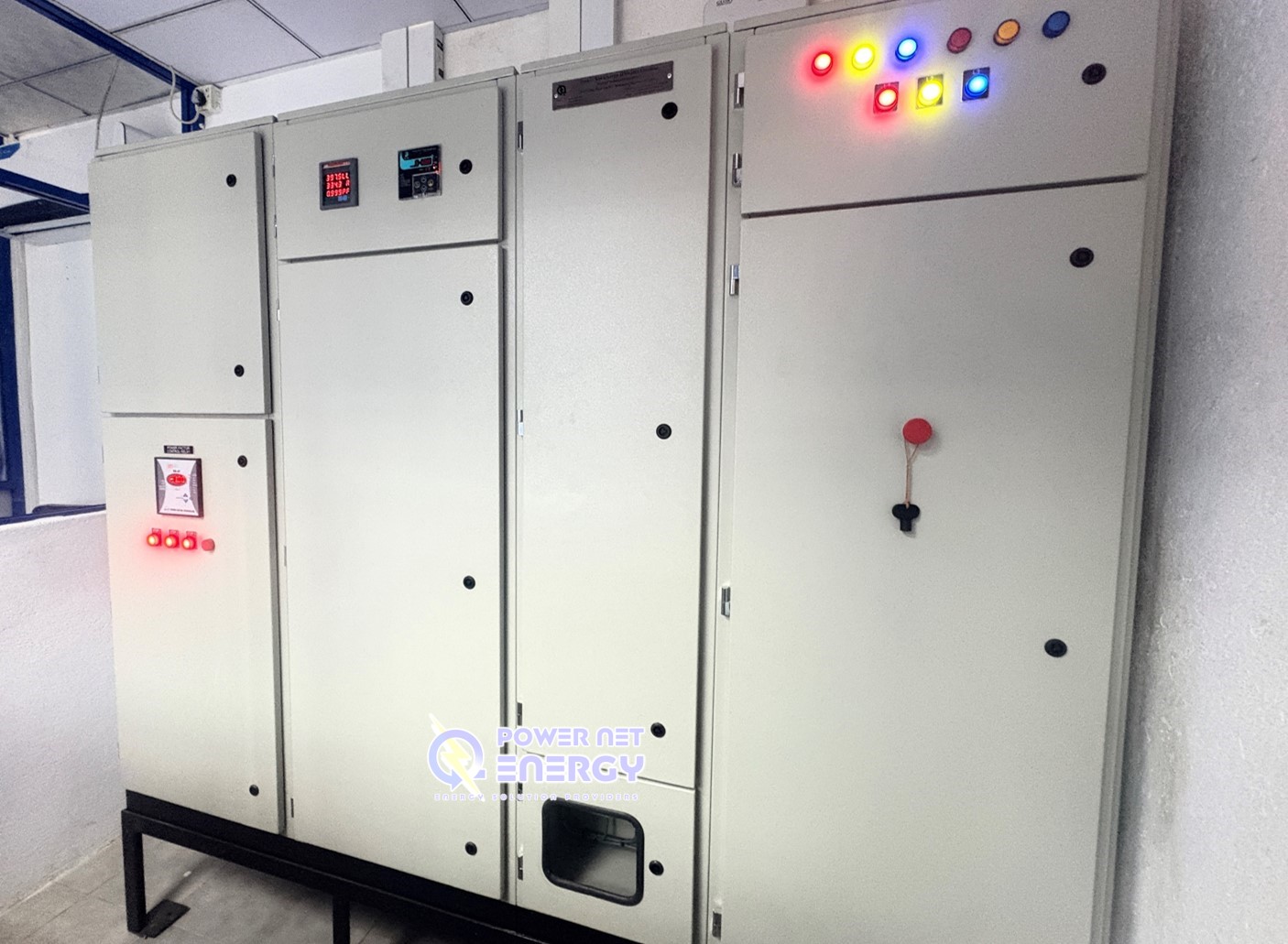

2. Uninterrupted Power Distribution (Manual / Automatic Changeover)

Manual Changeover and Automatic Transfer Changeover systems are mainly used in Main Distribution Boards to transfer electrical loads between the main power supply and an alternative source such as a generator. Manual systems provide controlled source selection, while automatic systems transfer the supply during power interruptions. Additional changeover arrangements can be incorporated according to customer requirements, helping reduce downtime and maintain continuous power for critical industrial operations.

3. Power Monitoring (Power Quality Analyzers)

Power Quality Analyzers are used to monitor and evaluate the performance and quality of an industrial electrical power system. These devices provide important information about voltage, current, frequency, power factor, harmonics, and other electrical conditions. By identifying power quality issues at an early stage, they help customers improve system efficiency, prevent equipment damage, and maintain stable and reliable industrial operations.

4. Safety Protection (EFR/ELR/PFR)

Earth Fault Relays, Earth Leakage Relays, and Phase Failure Relays provide additional protection against electrical faults and abnormal operating conditions. These devices detect earth faults, unwanted leakage currents, phase loss, and related supply problems, allowing the protection system to disconnect the affected circuit when necessary. They help protect personnel, cables, motors, and electrical equipment while reducing the risk of electrical damage and fire.

5. Lighting Protection (RCD)

Light Distribution Boards are designed to distribute electrical power safely to lighting and other low-power circuits throughout industrial and commercial facilities. These boards are equipped with Residual Current Devices (RCDs) to provide additional protection against earth leakage and electric shock. This combination helps safeguard personnel, lighting systems, and connected equipment while ensuring reliable and safe power distribution.

Why Power Monitoring and Safety Protection Needs?

Regular power monitoring and electrical safety protection are essential for maintaining an efficient, reliable, and safe industrial power system. Daily or weekly monitoring helps identify unnecessary power consumption, power factor reduction, phase imbalance, and other electrical issues before they lead to higher operating costs or equipment damage.

• Power Consumption Monitoring: Monitor total and individual power consumption to identify high-energy loads and control unnecessary electricity usage.
• Power Factor Monitoring: Identify low power factor conditions and determine when capacitor bank compensation is required to improve power efficiency and reduce avoidable electricity costs.
• Power Flow Monitoring: Monitor total and individual power flow across distribution sections to understand energy usage and identify abnormal consumption patterns.
• Phase Balance Monitoring: Detect unbalanced phase conditions that can affect equipment performance, increase losses, and reduce the efficiency of three-phase systems.
• Earth Fault & Earth Leakage Protection: EFR and ELR systems detect dangerous earth faults and leakage currents, helping protect personnel from electric shock and reducing the risk of electrical fires and equipment damage.

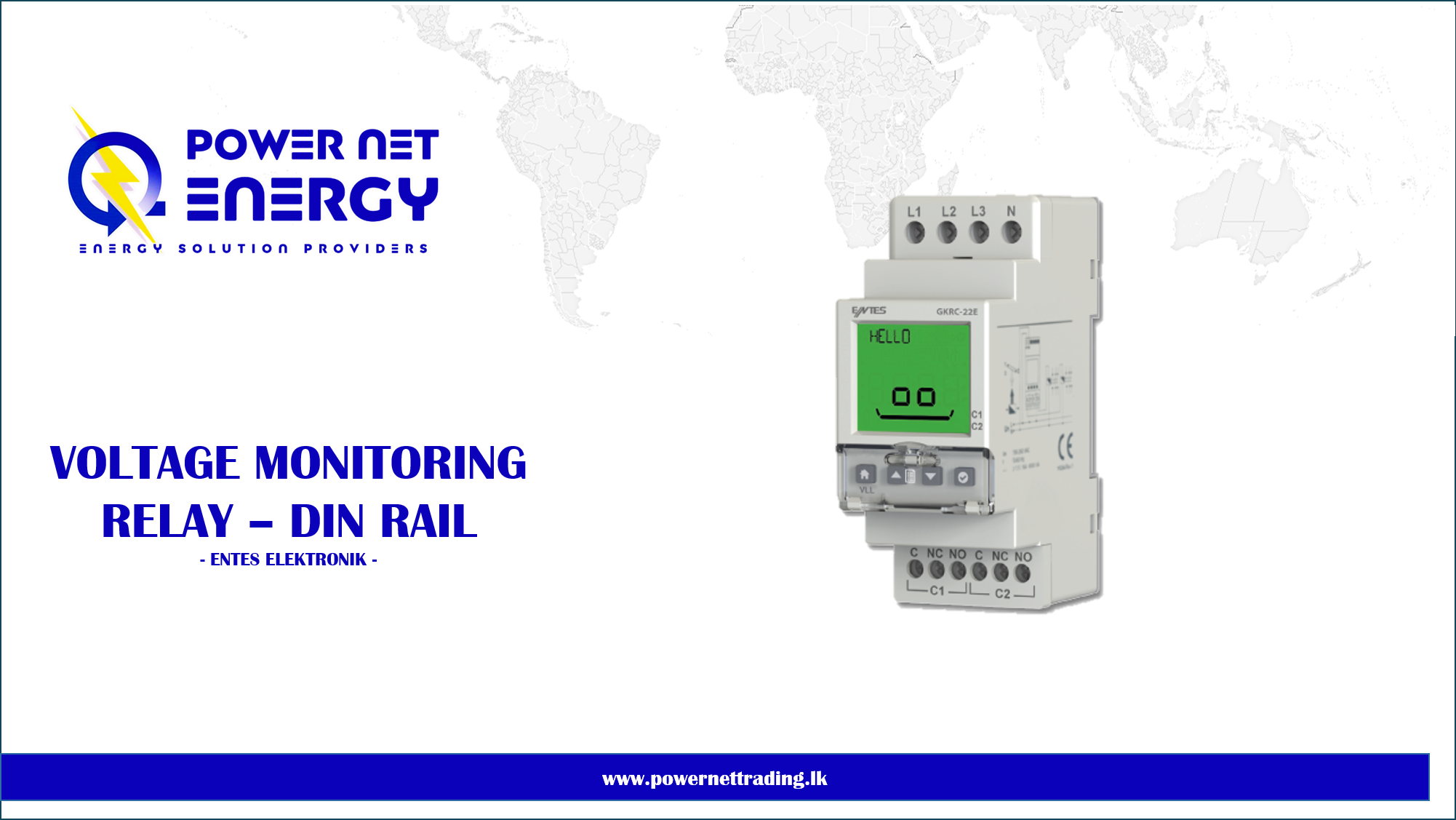

• Phase Failure Protection: PFR systems protect three-phase motors and equipment against phase loss and abnormal voltage conditions, including under-voltage and over-voltage, helping prevent overheating, motor failure, and unexpected downtime.

By combining continuous power monitoring with appropriate safety protection, industries can better control energy consumption, identify electrical problems early, protect valuable equipment, and maintain safer and more reliable operations.

Designing a Distribution Board

The design of a capacitor bank begins with a comprehensive analysis of the power quality at the industrial or factory site. Our process includes:

1. Identifying Power Distribution Requirements

We identify the main machines, equipment, and sub-distribution boards that require power from the distribution panel. Based on customer requirements, we determine the required load capacity, outgoing circuits, and power distribution arrangement.

2. Selecting Main Protection Requirements:

Based on the identified loads and electrical requirements, we select suitable protection devices such as ACBs, MCCBs, MCBs, changeover systems, earth fault protection, earth leakage protection, and phase failure protection to ensure safe and reliable operation.

3. Custom Solutions:

We provide a detailed estimate including the proposed panel configuration, protection systems, selected components, and preferred brands such as ABB, Terasaki, or Siemens. Each distribution board is manufactured according to the customer's specific requirements, application, and budget.

Maintenance and Service

Proper maintenance is essential to ensure the reliable operation of a capacitor bank. Our maintenance and service approach is comprehensive and customer-centric:

Warranty and Initial Inspection

• 12-Month Warranty: All new installations come with a 12-month warranty.
• Complimentary Service: During the warranty period, we provide one free inspection at no additional charge.

Post-Warranty Maintenance

• Customers can opt for an annual maintenance contract after the warranty period to ensure continued efficiency and reliability.

Importance of Maintenance for Distribution Board

Distribution boards operate continuously under varying electrical loads, making regular maintenance crucial. Without proper care, components such as circuit breakers, busbars, relays, terminals, and protective devices can deteriorate over time, leading to reduced performance, electrical faults, or unexpected failures. Regular maintenance offers several benefits:

• Identifies and resolves potential electrical issues early.
• Ensures safe, reliable, and efficient power distribution.
• Provides insights for future planning, upgrades, and capacity requirements.

After each service, if anything is recommended for change or replacement, we notify the customer before it causes any interruption.

Looking for a custom distribution panel board for your facility? Contact Power Net Energy for a free site assessment and quotation, or explore our full range of power panel products.
